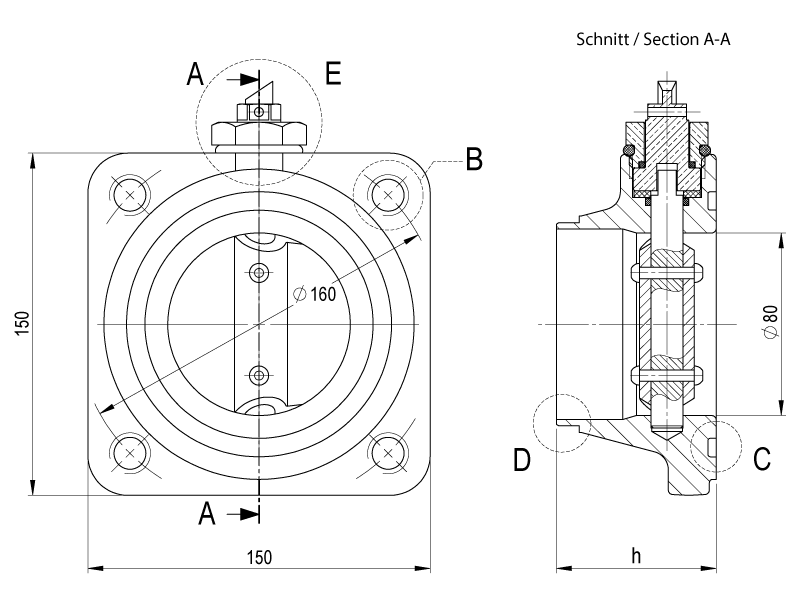

Our transformer radiator valves DIN 42560 type B as well B OR for transformers are designed to be mounted between two flanges or between tank wall flange and radiator flange. The flange is made of forged steel S355J2G3 and thus not subject to any leakage. Flange thickness is h=40 mm with recessed body.
Our transformer radiator valves DIN 42560 B and B OR NW 80 fulfill the tightness requirements and operating conditions in accordance with DIN 42560 as well as EN 50216-8. Due to the metal sealed clap a low leakage is permitted while the soft-sealed radiator valve is absolutely oil and vacuum-tight (zero-leakage). Both variations are absolutely tight in operation condition to the outside of the transformer.
Transformer radiator valve – wafer type features
- Nominal diameter: 80 mm / square flange
- Wafer type flange
- 4x 18 mm bores or M16 threads
- PCD: 160 mm
- Temperature range: -60 °C up to +125°C
- Transformer valve housing for wafer flange in stainless steel (AISI 316L)
- Grooves for O-ring-sealing upon customer request.
- Coating SOLIDLINE up to C5-M in all commonly used RAL colours available
- Setting device in several versions:
- Setting device Standard in accordance with DIN 42560
- Lockable cap
- Handle
- Lockable handle (only available for type B)
